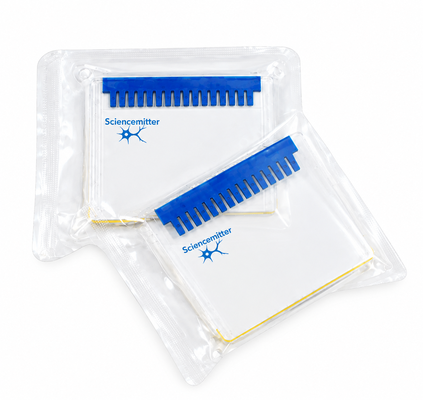

FuturePAGE™ Bis-Tris Precast Mini Protein Gel 15 Wells, 1mm, 4-12%, 4-20%, 12%, 10%, 8%

$65.00

Available

Variants:

FuturePAGE™ Bis-Tris Precast Mini Protein Gel 8% 15 Wells, 1mm
FuturePAGE™ Bis-Tris Precast Mini Protein Gel 4-20% 15 Wells, 1mm
uturePAGE™ Bis-Tris Precast Mini Protein Gel 4-12% 15 Wells, 1mm
FuturePAGE™ Bis-Tris Precast Mini Protein Gel 12% 15 Wells, 1mm
FuturePAGE™ Bis-Tris Precast Mini Protein Gel 10% 15 Wells, 1mm $

Product Description

FuturePAGE™ Precast Protein Gels are polyacrylamide electrophoresis gels designed to separate a wide range of protein sizes. They are available in 10-well, 12-well and 15-well formats, with large sample loading capacities—up to 50 µL per well for the 12-well format and 30 µL per well for the 15-well format.

Produced using automated gel-casting technology, FuturePAGE™ gels ensure excellent batch-to-batch consistency and superior quality. The unique gel buffer formula delivers sharper bands and higher resolution, while the neutral pH prevents protein re-modification during electrophoresis, thereby improving protein stability and gel performance.

Compared with traditional hand-cast gels, FuturePAGE™ Precast Protein Gels offer the following advantages:

Easy to use: Ready-to-use format saves preparation time.
Safe and reliable: Eliminates the need to handle toxic reagents.
Accurate and reproducible results: Automated casting technology ensures consistent quality and experimental reproducibility.
Custom Solutions: We can manufacture precast gels at custom concentrations of bis-tris and in non-standard sizes to your specifications

Specifications

Item	Specification
Gel material	Polyacrylamide
Cassette dimensions (W × L)	10 × 8 cm
Cassette thickness	4.6 mm
Gel dimensions (W × L)	8.6 × 6.7 cm
Gel thickness	1.0 mm
Gel concentration	4–20 % gradient
Number of wells	15
Cassette material	Styrene copolymer
Comb material	Polycarbonate
Recommended running buffer	MOPS
Gel chemistry	Bis-Tris
Gel storage conditions	Store flat at 2–8 °C; do not freeze
Shelf life at recommended temperature	12 months

Compatibility

FuturePAGE™ precast protein gels are fully compatible with Bio-Rad Mini-PROTEAN® systems, including:

Mini-PROTEAN® Tetra Vertical Electrophoresis Cell
Mini-PROTEAN® Tetra Handcast Systems
Mini-PROTEAN® 3 Dodeca Cell

They also fit any other electrophoresis apparatus designed for gels of these dimensions, ensuring easy installation with no special adapters required.
